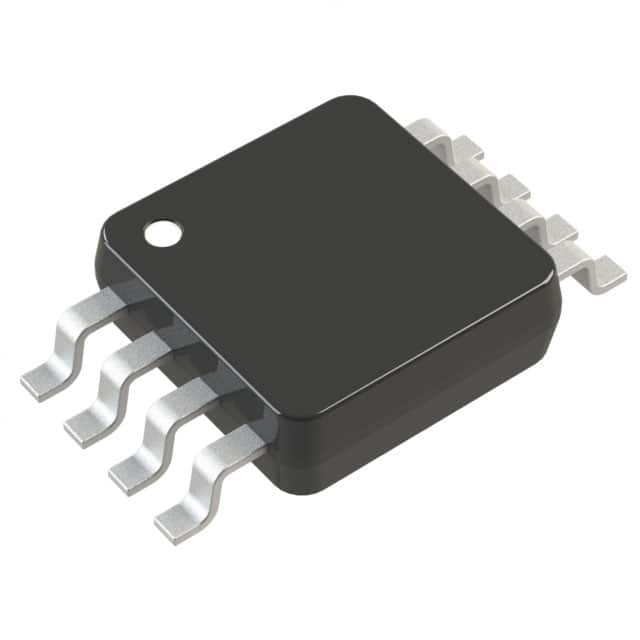

ADG822BRMZ-REEL7
IC SW SPST-NCX2 600MOHM 8MSOPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG822BRMZ-REEL7 is a dual, single-pole, single-throw (SPST) normally closed analog switch. This device features a low on-resistance of 600mOhm maximum, with channel-to-channel matching of 160mOhm. The ADG822BRMZ-REEL7 operates from a single supply voltage of 1.8V to 5.5V and offers a -3dB bandwidth of 24MHz. Key specifications include a charge injection of 15pC and crosstalk of -82dB at 1MHz. Typical applications include battery-powered equipment, audio and video switching, and general-purpose analog signal routing. The component is supplied in an 8-MSOP package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 600mOhm |
| -3db Bandwidth | 24MHz |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 15pC |
| Crosstalk | -82dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 160mOhm |
| Switch Time (Ton, Toff) (Max) | 45ns, 16ns |
| Channel Capacitance (CS(off), CD(off)) | 85pF, 98pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 2 |
