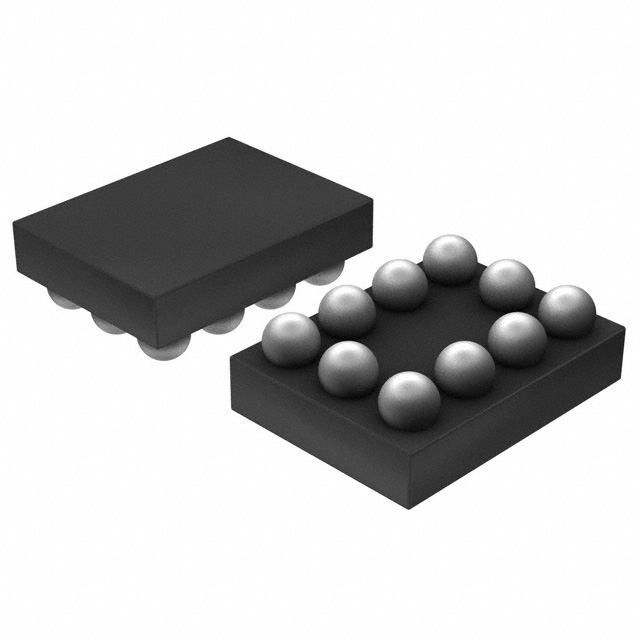

ADG787BCB-500RL7U1
IC SWITCH SPDT X 2 3OHM 10WLCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG787BCB-500RL7U1 is a dual SPDT (Single Pole Double Throw) analog switch. This component features a low on-resistance of 3 Ohms maximum, with channel-to-channel matching of 20 mOhms. It supports single-supply operation from 1.8V to 5.5V. The device offers a -3dB bandwidth of 145 MHz and exhibits excellent isolation with crosstalk at -110 dB at 1 MHz. Its switch time is 19ns (turn-on) and 5ns (turn-off) maximum. Designed for surface mounting, it is supplied in a 10-WLCSP (2x1.5) package, delivered on tape and reel. Applications include battery-powered equipment, audio and video switching, and general-purpose analog signal routing.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C (TA) |
| On-State Resistance (Max) | 3Ohm |
| -3db Bandwidth | 145MHz |
| Supplier Device Package | 10-WLCSP (2x1.5) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 14pC |
| Crosstalk | -110dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 20mOhm |
| Switch Time (Ton, Toff) (Max) | 19ns, 5ns |
| Channel Capacitance (CS(off), CD(off)) | 16pF |
| Current - Leakage (IS(off)) (Max) | 50pA (Typ) |
| Number of Circuits | 2 |
