ADG722ACPZ-REEL7
IC SWITCH SPST-NCX2 4OHM 8LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc. ADG722ACPZ-REEL7 is a 2-circuit, single-pole, single-throw (SPST) normally closed (NC) analog switch. This component features a low on-resistance of 4 Ohms maximum and a -3dB bandwidth of 200 MHz, making it suitable for high-frequency signal routing. The device operates with a single supply voltage ranging from 1.8V to 5.5V. Key performance parameters include low leakage current of 250pA maximum and crosstalk of -97dB at 1MHz, ensuring signal integrity. Channel capacitance is 7pF, and charge injection is specified at 2pC. Channel-to-channel on-resistance matching (?Ron) is 300 mOhms. The switch time is typically 14ns for turn-on and 6ns for turn-off. This component is housed in an 8-LFCSP-WD (2x3) package and is supplied on tape and reel. Applications include signal switching in test and measurement equipment, audio and video routing, and telecommunications systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

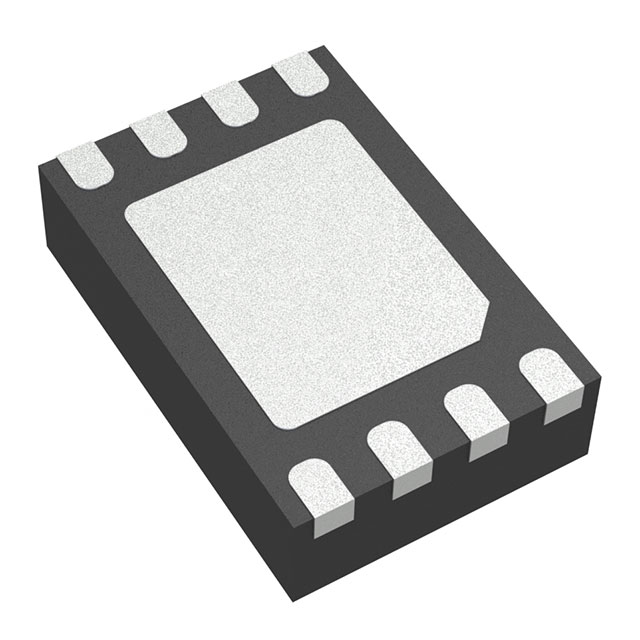

| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 4Ohm |
| -3db Bandwidth | 200MHz |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 2pC |
| Crosstalk | -97dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 300mOhm |
| Switch Time (Ton, Toff) (Max) | 14ns, 6ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 2 |
