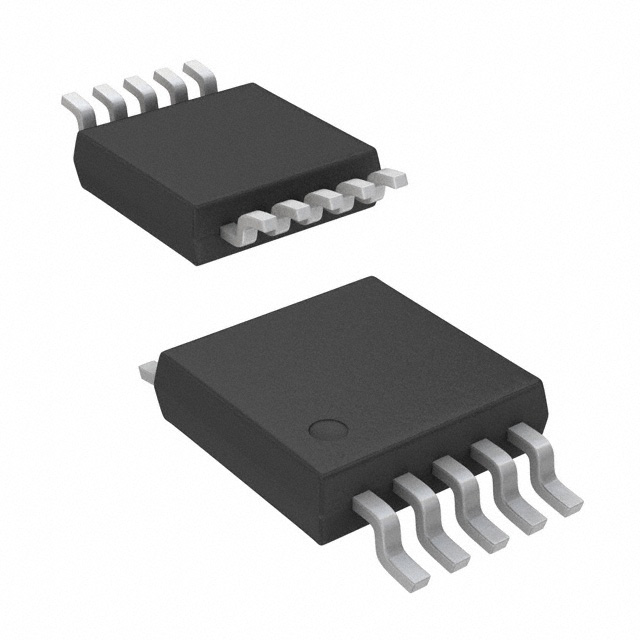

ADG621C-PT7
IC SWITCH SPST-NO X 2 5.5OHM DIEManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG621C-PT7 is a dual single-pole, single-throw (SPST) analog switch designed for precision signal routing. This component features a low on-resistance of 5.5 Ohms (max) and excellent channel-to-channel matching of 250 mOhm, ensuring minimal signal distortion. With a -3dB bandwidth of 230MHz, it is suitable for moderate frequency applications. The ADG621C-PT7 operates from single or dual power supplies ranging from 2.7V to 5.5V. Key specifications include low leakage current of 250 pA (max) and a charge injection of 110 pC. Crosstalk is rated at -90dB at 1MHz. This device is supplied in a Die form factor, packaged on Tape & Reel (TR). Applications for this component include automatic test equipment, data acquisition systems, and industrial control.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 5.5Ohm |
| -3db Bandwidth | 230MHz |
| Supplier Device Package | Die |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 5.5V |
| Charge Injection | 110pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 250mOhm |
| Switch Time (Ton, Toff) (Max) | 120ns, 70ns |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 2 |
