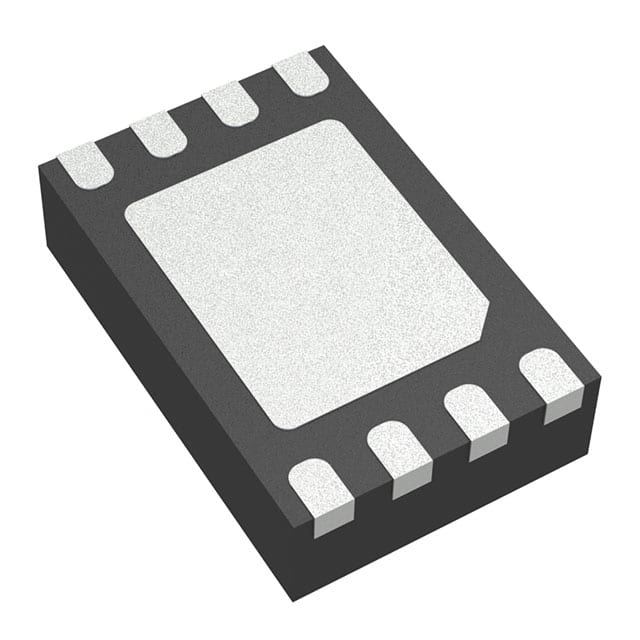

ADG5419BCPZ-RL7
IC SWITCH SPDT X 1 14OHM 8LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 2:1 14Ohm 8-LFCSP-WD (2x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 14Ohm |
| -3db Bandwidth | 190MHz |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Charge Injection | 160pC |
| Crosstalk | -80dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 239ns, 185ns |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 1 |
