ADG5412BCPZ-REEL7
IC SW SPST-NOX4 10OHM 16LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc. ADG5412BCPZ-REEL7 is a quad single-pole, normally open (SPST-NO) analog switch. This component features low on-resistance of 10 Ohm maximum, with channel-to-channel matching of 350 mOhm. It operates across a wide supply voltage range, supporting dual supplies from ±9V to ±22V and single supplies from 9V to 40V. With a 3dB bandwidth of 160 MHz, it is suitable for applications requiring signal switching in industrial, medical, and communications systems. The device exhibits low leakage current of 250 pA maximum and minimal charge injection of 310 pC. Crosstalk is specified at -70 dB at 1 MHz. Packaged in a 16-LFCSP-WQ (4x4) surface-mount configuration, it is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

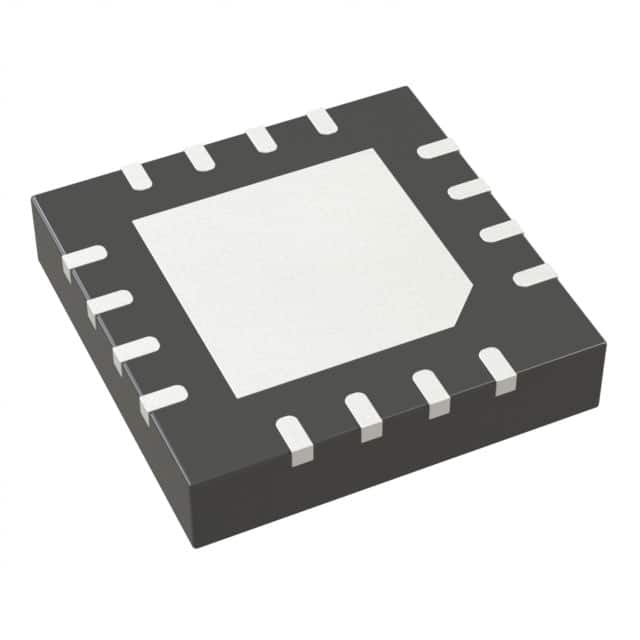

| Package / Case | 16-WQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 160MHz |
| Supplier Device Package | 16-LFCSP-WQ (4x4) |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Charge Injection | 310pC |
| Crosstalk | -70dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 350mOhm |
| Switch Time (Ton, Toff) (Max) | 187ns, 138ns |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 4 |
