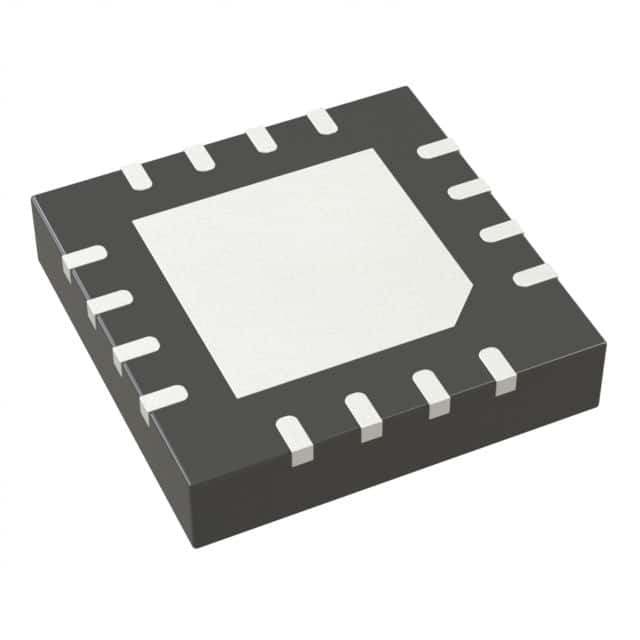

ADG5409TCPZ-EP-RL7
IC SWITCH SP4T X 2 14OHM 16LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG5409TCPZ-EP-RL7 is a dual, 4:1 analog multiplexer/demultiplexer featuring SP4T switch configurations. This component offers a low on-resistance of 14 Ohms maximum, with channel-to-channel matching (?Ron) of 300 mOhms. The device operates across a wide supply voltage range, supporting single supplies from 9V to 40V and dual supplies from ±9V to ±22V. With a -3dB bandwidth of 88MHz and excellent crosstalk performance of -60dB at 1MHz, it is well-suited for applications in industrial and medical equipment. The 16-LFCSP-WQ (4x4) package with exposed pad ensures efficient thermal management for surface mount applications. Low charge injection of 155 pC and minimal leakage current of 250 pA (IS(off) max) contribute to signal integrity. Operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 14Ohm |
| -3db Bandwidth | 88MHz |
| Supplier Device Package | 16-LFCSP-WQ (4x4) |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Charge Injection | 155pC |
| Crosstalk | -60dB @ 1MHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 300mOhm |
| Switch Time (Ton, Toff) (Max) | 165ns, 153ns |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 48pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 2 |
