ADG5401BCPZ-RL7
IC SWITCH SPST-NOX1 7OHM 8LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 1:1 7Ohm 8-LFCSP-WD (2x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

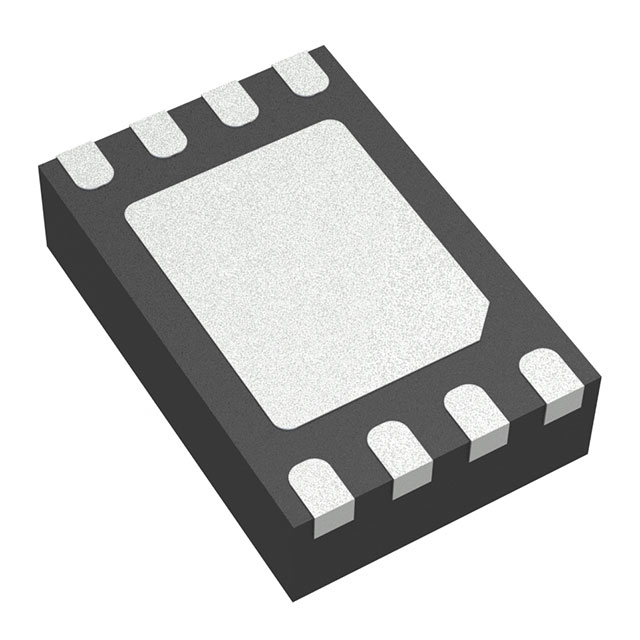

| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 7Ohm |
| -3db Bandwidth | 170MHz |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Charge Injection | 275pC |
| Crosstalk | - |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 21ns, 23ns |
| Channel Capacitance (CS(off), CD(off)) | 21pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 1 |
