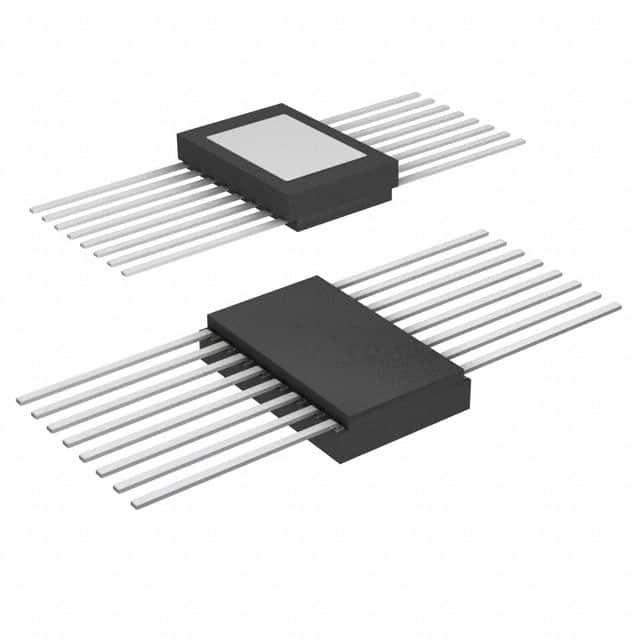

ADG5298HFZ
IC MUX 8:1 350OHM 16CFLATPACKManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 8:1 350Ohm 16-CFlatPack
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-CFlatpack |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 210°C (TA) |
| On-State Resistance (Max) | 350Ohm |
| -3db Bandwidth | 121MHz |
| Supplier Device Package | 16-CFlatpack |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Charge Injection | 0.4pC |
| Crosstalk | -80dB @ 1MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.5Ohm |
| Switch Time (Ton, Toff) (Max) | 245ns, 260ns |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF |
| Current - Leakage (IS(off)) (Max) | 8nA |
| Number of Circuits | 1 |
Request a Quote
