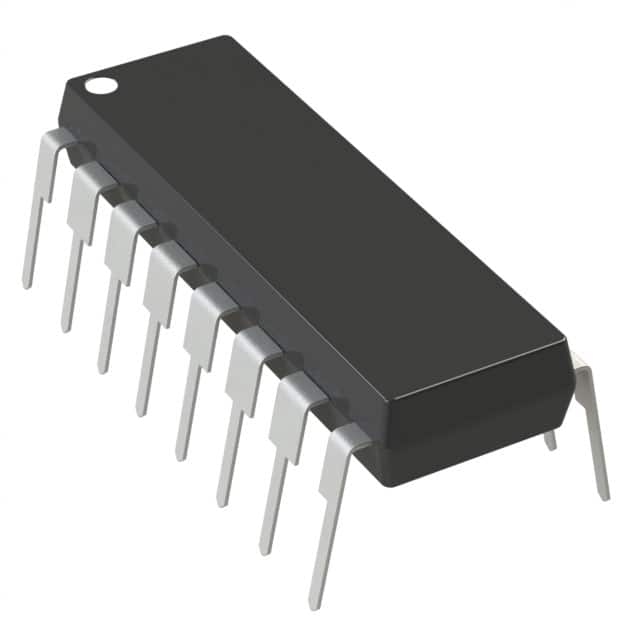

ADG513BNZ
IC SW SPST-NO/NCX4 30OHM 16DIPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 1:1 30Ohm (Typ) 16-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 30Ohm (Typ) |
| -3db Bandwidth | - |
| Supplier Device Package | 16-PDIP |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 5.5V |
| Charge Injection | 11pC |
| Crosstalk | -85dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 200ns, 120ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 4 |
