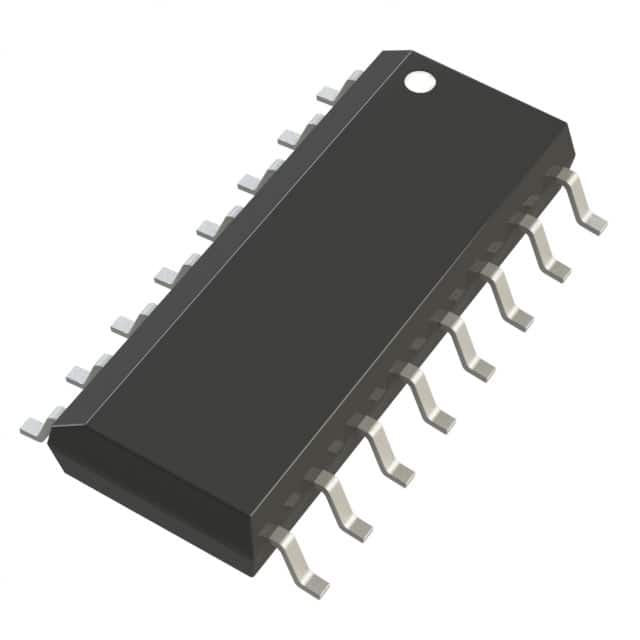

ADG508FBRNZ
IC MUX 8:1 270OHM 16SOICManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG508FBRNZ is a monolithic CMOS analog multiplexer/demultiplexer. This component features an 8:1 multiplexer configuration with a single channel. The device exhibits a low on-resistance of 270 Ohms typical, with channel-to-channel matching of 8.1 Ohms. It operates within a temperature range of -40°C to 85°C (TA) and supports dual supply voltages up to ±15V. Key specifications include a charge injection of 15pC and leakage current of 1nA (IS(off) Max). Switching times are 230ns (Ton Max) and 130ns (Toff Max). The ADG508FBRNZ is supplied in a 16-SOIC package. Applications for this device span industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 270Ohm (Typ) |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | 15pC |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 8.1Ohm |
| Switch Time (Ton, Toff) (Max) | 230ns, 130ns |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 1 |
