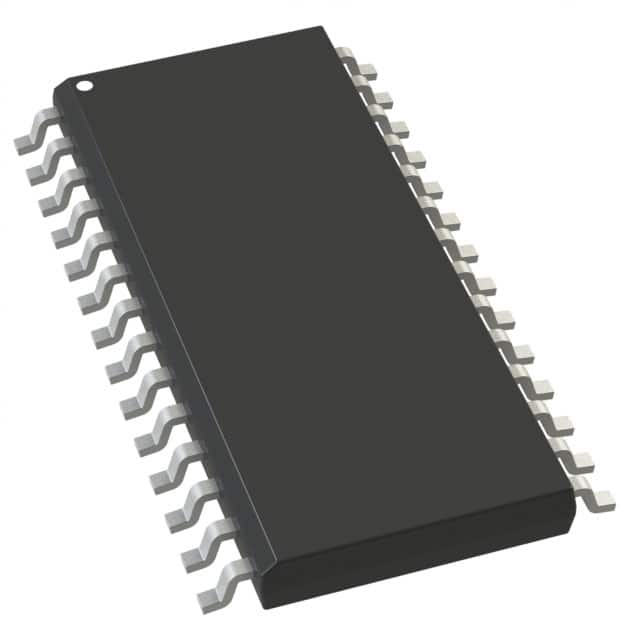

ADG507AKRUZ-REEL7
IC MUX DUAL 8:1 300OHM 28TSSOPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. LC²MOS dual 8:1 multiplexer/demultiplexer, part number ADG507AKRUZ-REEL7, is designed for high-performance signal routing. This 2-circuit device features 300 Ohm on-state resistance and exhibits excellent channel-to-channel matching with a maximum ΔRon of 15 Ohms. The 28-TSSOP package is suitable for surface mount applications. Operating with dual supply voltages from ±10.8V to ±16.5V, or single supply from 10.8V to 16.5V, this component offers low leakage current of 1 nA (IS(off)) and a charge injection of 4 pC. Typical applications for this device include test and measurement equipment, industrial automation, and medical instrumentation where precise signal switching is critical. The component is supplied in tape and reel packaging.
Additional Information
Series: LC²MOSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| On-State Resistance (Max) | 300Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Charge Injection | 4pC |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 15Ohm |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 2 |
