ADG507AKRUZ-REEL

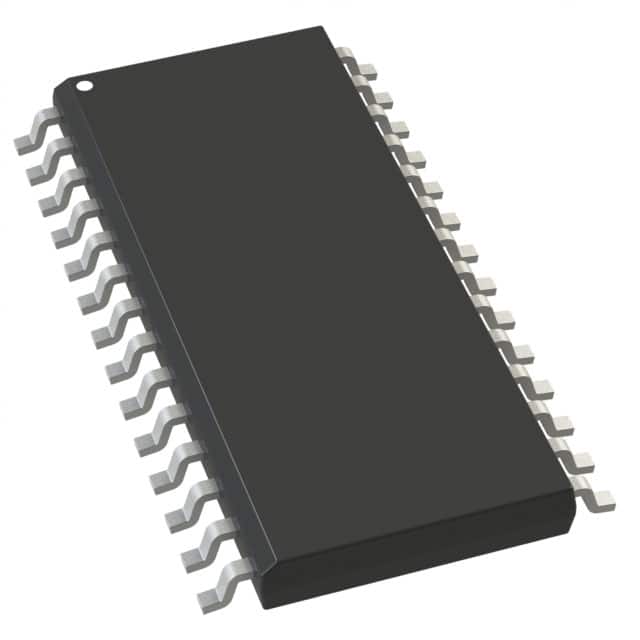

IC MUX DUAL 8:1 300OHM 28TSSOPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. LC²MOS dual 8:1 multiplexer, part number ADG507AKRUZ-REEL, offers 300 Ohm on-resistance with a maximum of 15 Ohm channel-to-channel matching. This 28-TSSOP package component supports dual supply voltages from ±10.8V to ±16.5V and single supply from 10.8V to 16.5V. Key specifications include 4pC charge injection and a leakage current of 1nA (IS(off)). Switching times are rated at 300ns for both turn-on and turn-off. With a channel capacitance of 5pF when off and 22pF when on, and an operating temperature range of -40°C to 85°C, this device is suitable for applications in industrial automation, test and measurement, and medical equipment. The component is supplied in tape and reel packaging.
Additional Information
Series: LC²MOSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| On-State Resistance (Max) | 300Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Charge Injection | 4pC |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 15Ohm |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 2 |
