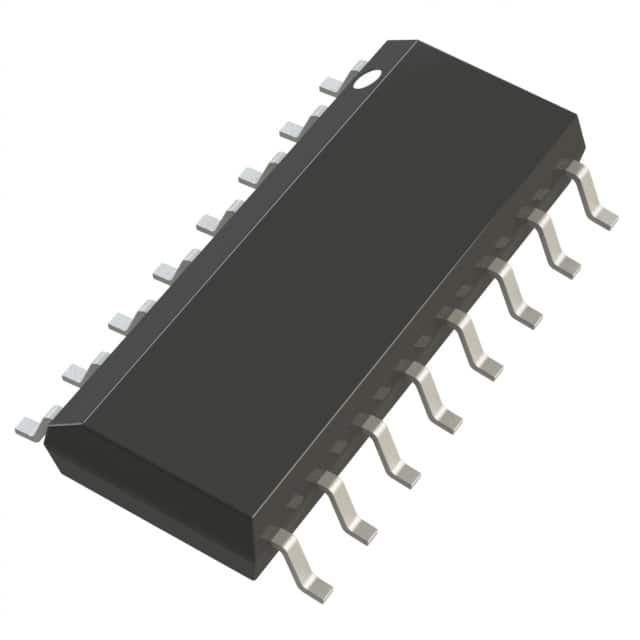

ADG202AKRZ-REEL7
IC SWITCH SPST-NOX4 90OHM 16SOICManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 1:1 90Ohm 16-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 90Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 10V ~ 15V |
| Voltage - Supply, Dual (V±) | ±10V ~ 15V |
| Charge Injection | 20pC |
| Crosstalk | -80dB @ 100kHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 4.5Ohm |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Number of Circuits | 4 |
Request a Quote
