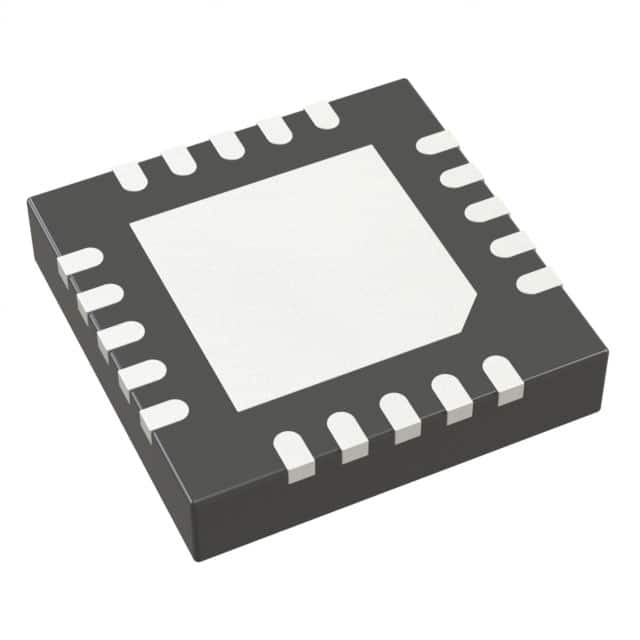

ADG1439BCPZ-REEL7
IC SWITCH SP4TX2 11.5OHM 20LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 4:1 11.5Ohm 20-LFCSP (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 11.5Ohm |
| -3db Bandwidth | 130MHz |
| Supplier Device Package | 20-LFCSP (4x4) |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | 4pC |
| Crosstalk | -70dB @ 1MHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 550mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 28pF |
| Current - Leakage (IS(off)) (Max) | 150pA |
| Number of Circuits | 2 |
Request a Quote
