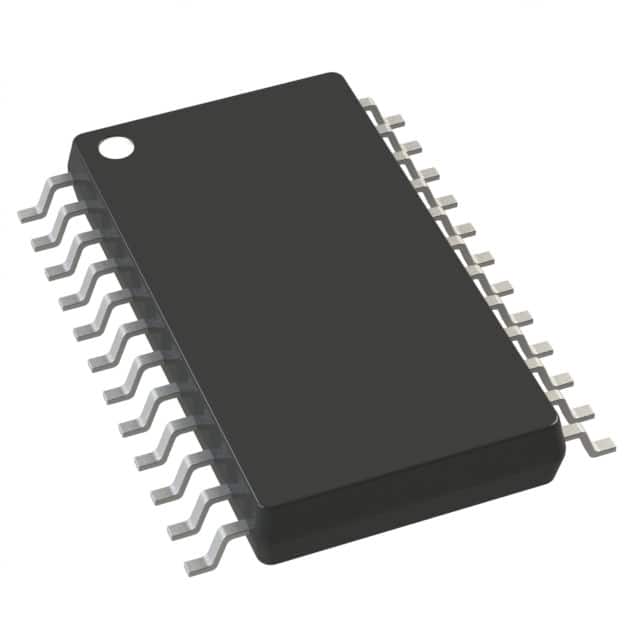

ADG1414BRUZ-REEL7
IC SW SPST-NOX8 11.5OHM 24TSSOPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
8 Circuit IC Switch 1:1 11.5Ohm 24-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 11.5Ohm |
| -3db Bandwidth | 256MHz |
| Supplier Device Package | 24-TSSOP |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | 10pC |
| Crosstalk | -75dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 550mOhm |
| Switch Time (Ton, Toff) (Max) | 93ns, 35ns |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 150pA |
| Number of Circuits | 8 |
Request a Quote
