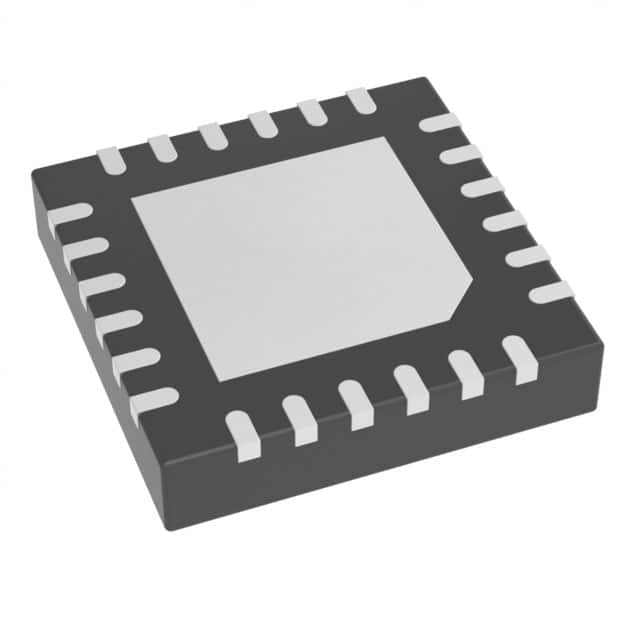

ADG1414BCPZ-REEL7
IC SW SPST-NOX8 11.5OHM 24LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG1414BCPZ-REEL7 is an 8-circuit, single-pole, single-throw (SPST) analog switch. This component offers a low on-resistance of typically 11.5 Ohms, with channel-to-channel matching of 550 mOhms. Designed for high-performance applications, it operates over a supply voltage range of ±4.5V to ±16.5V or a single 12V supply. The device features a -3dB bandwidth of 256MHz and excellent crosstalk performance of -75dB at 1MHz. With a charge injection rating of 10pC and leakage current of 150pA, it is suitable for demanding signal routing tasks. The switch time characteristics are 93ns turn-on and 35ns turn-off. This component is supplied in a 24-LFCSP (4x4) package, tape and reel. Its robust specifications make it ideal for use in industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 11.5Ohm |
| -3db Bandwidth | 256MHz |
| Supplier Device Package | 24-LFCSP (4x4) |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | 10pC |
| Crosstalk | -75dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 550mOhm |
| Switch Time (Ton, Toff) (Max) | 93ns, 35ns |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 150pA |
| Number of Circuits | 8 |
