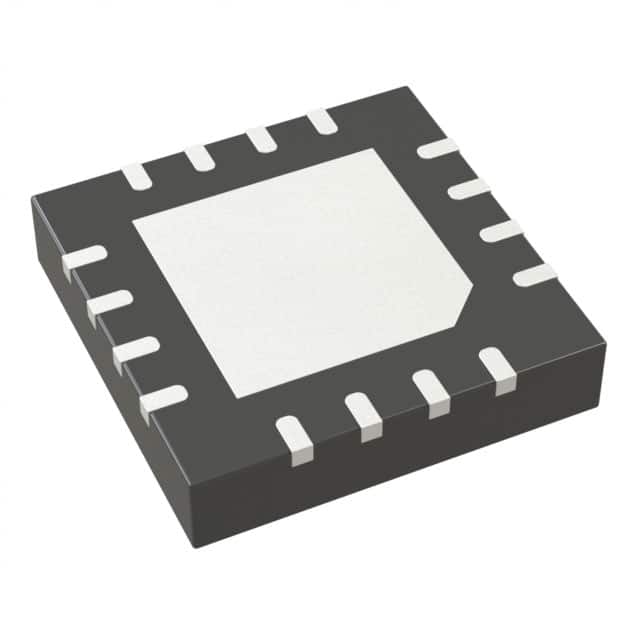

ADG1413YCPZ-REEL7
IC SW SPST-NO/NCX4 1.8OHM 16CSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG1413YCPZ-REEL7 is a quad, SPST analog switch featuring low on-resistance of 1.8O maximum and excellent channel-to-channel matching of 100mO ?Ron. This device supports dual power supplies from ±4.5V to ±16.5V or single supply from 5V to 16.5V. With a -3dB bandwidth of 170MHz and low charge injection of -20pC, it is suitable for applications requiring precise signal routing. Crosstalk performance of -100dB at 1MHz and leakage current of 550pA maximum ensure signal integrity. The ADG1413YCPZ-REEL7 is housed in a 16-LFCSP-VQ (4x4) package and is supplied on tape and reel. Its fast switching times of 150ns (on) and 120ns (off) make it ideal for use in industrial automation, medical equipment, and audio signal switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1.8Ohm |
| -3db Bandwidth | 170MHz |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | -20pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| Channel Capacitance (CS(off), CD(off)) | 23pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Number of Circuits | 4 |
