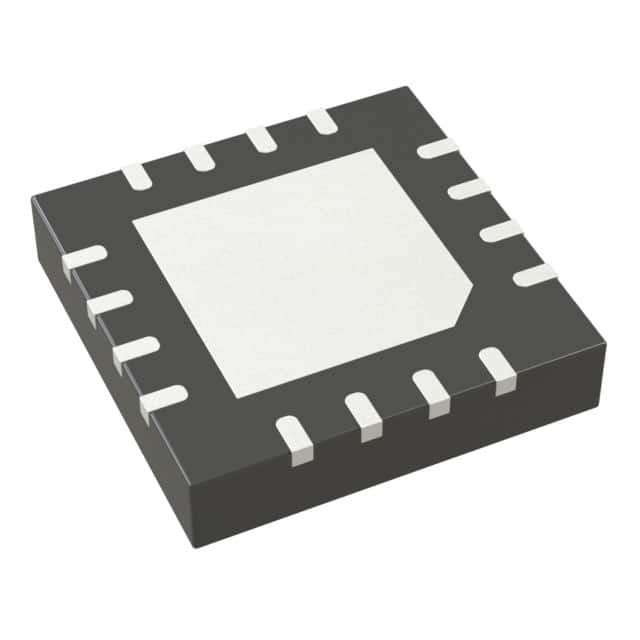

ADG1413YCPZ-REEL
IC SW SPST-NO/NCX4 1.8OHM 16CSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG1413YCPZ-REEL is a quad, SPST analog switch featuring a 1:1 multiplexer/demultiplexer configuration. This component offers a low on-resistance of 1.8 Ohm (max) and a -3dB bandwidth of 170MHz, making it suitable for high-performance signal routing applications. With a typical channel capacitance of 23pF and channel-to-channel matching of 100mOhm, it ensures signal integrity. The device operates across a wide temperature range of -40°C to 125°C and supports dual supply voltages from ±4.5V to ±16.5V, or single supply from 5V to 16.5V. Designed for surface mounting, it is supplied in a 16-LFCSP-VQ (4x4) package on tape and reel. Key applications include industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1.8Ohm |
| -3db Bandwidth | 170MHz |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | -20pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| Channel Capacitance (CS(off), CD(off)) | 23pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Number of Circuits | 4 |
