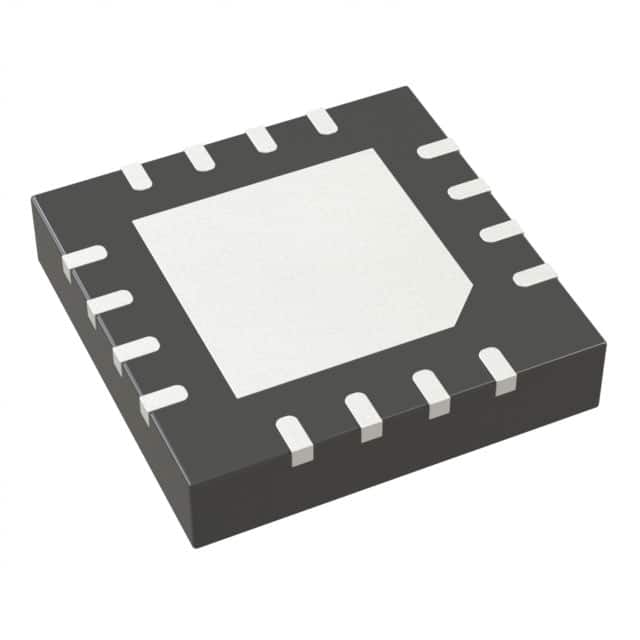

ADG1411WBCPZ-REEL
IC SW SPST-NCX4 1.8OHM 16LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG1411WBCPZ-REEL is a quad, single-pole, single-throw, normally closed analog switch. This component offers a low on-resistance of 1.8 Ohm maximum, with excellent channel-to-channel matching of 100 mOhm. Designed for high-performance applications, it features a -3dB bandwidth of 170 MHz and low charge injection of -20 pC. Crosstalk is suppressed to -100 dB at 1 MHz, ensuring signal integrity. Leakage current is minimized to 550 pA maximum. The device operates over a wide temperature range of -40°C to 125°C and supports dual supply voltages from ±4.5V to ±16.5V, or single supply from 5V to 16.5V. The ADG1411WBCPZ-REEL is supplied in a 16-LFCSP-VQ (4x4) package on tape and reel. Its robust performance makes it suitable for automotive applications.
Additional Information
Series: ADI0012RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1.8Ohm |
| -3db Bandwidth | 170MHz |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | -20pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| Channel Capacitance (CS(off), CD(off)) | 23pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Grade | Automotive |
| Number of Circuits | 4 |
