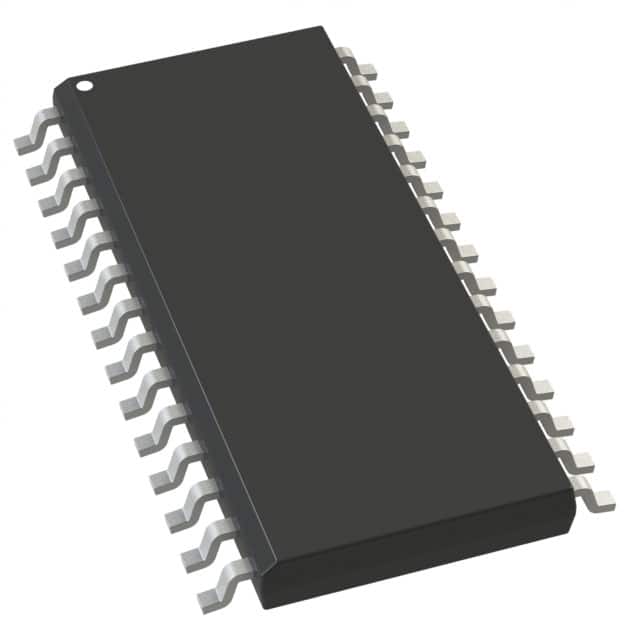

ADG1406BRUZ
IC MUX 16:1 11.5OHM 28TSSOPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 16:1 11.5Ohm 28-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 11.5Ohm |
| -3db Bandwidth | 60MHz |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | 10pC |
| Crosstalk | -70dB @ 1MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 550mOhm |
| Switch Time (Ton, Toff) (Max) | 110ns, 120ns |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 90pf |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 1 |
