ADG1404YRUZ

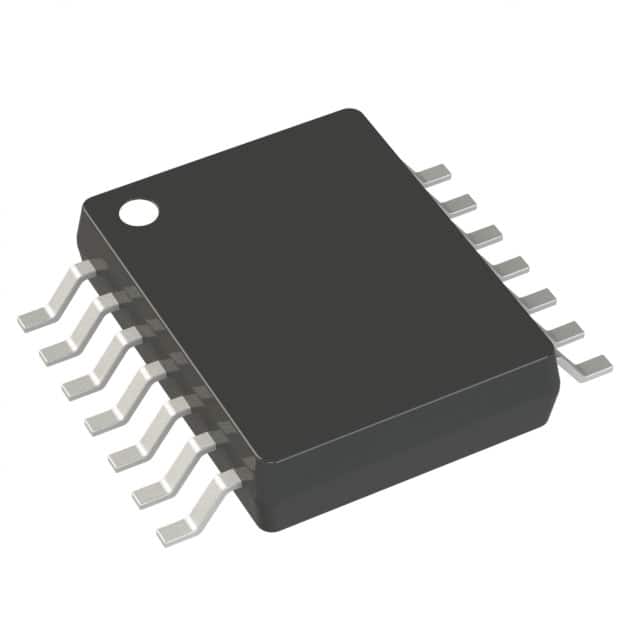

IC SWITCH SP4TX1 1.8OHM 14TSSOPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG1404YRUZ is a single-pole, four-throw (SP4T) analog switch. This device features a low on-resistance of 1.8 Ohms maximum, with channel-to-channel matching (?Ron) of 100 mOhms. Designed for robust performance, it offers a -3dB bandwidth of 55 MHz and excellent crosstalk rejection of -82 dB at 100 kHz. The ADG1404YRUZ operates over a wide temperature range of -40°C to 125°C and supports dual supply voltages from ±4.5V to ±16.5V or single supply from 5V to 16.5V. Typical applications include signal routing in industrial, medical, and audio systems. The component is supplied in a 14-TSSOP package for surface mounting. Its low leakage current of 550 pA maximum ensures minimal signal degradation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1.8Ohm |
| -3db Bandwidth | 55MHz |
| Supplier Device Package | 14-TSSOP |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | -20pC |
| Crosstalk | -82dB @ 100kHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 120ns, 135ns |
| Channel Capacitance (CS(off), CD(off)) | 23pF, 90pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Number of Circuits | 1 |
