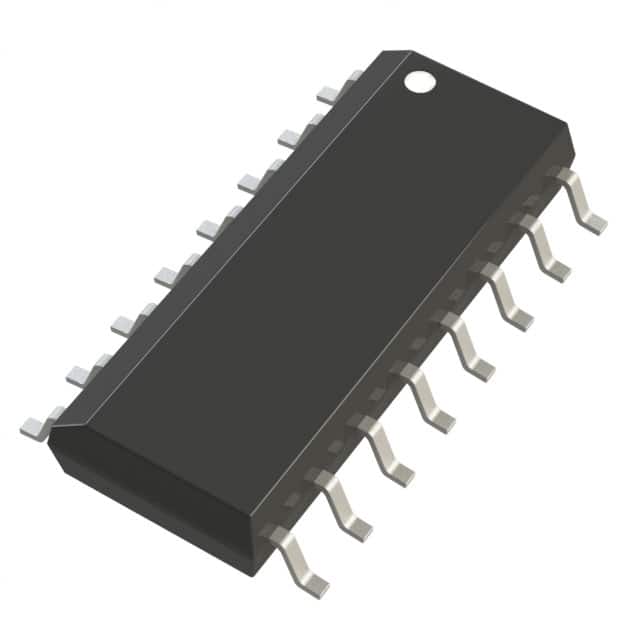

ADG1312YRZ-REEL7
IC SW SPST-NOX4 200OHM 16SOICManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc. ADG1312YRZ-REEL7 is a quad single-pole, single-throw, normally open (SPST-NO) analog switch. This surface-mount component features a low on-resistance of 200 Ohms maximum, with channel-to-channel matching within 5 Ohms. Its -3dB bandwidth reaches 600MHz, and it exhibits excellent crosstalk performance of -90dB at 1MHz. The device supports dual power supply operation up to ±15V or single supply up to 12V. Key specifications include channel capacitance of 5pF (off), charge injection of 2pC, and leakage current of 10nA (off). Switching times are 125ns for turn-on and 50ns for turn-off. The 16-SOIC package is supplied on tape and reel. This component is utilized in various applications within the industrial, medical, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| On-State Resistance (Max) | 200Ohm |
| -3db Bandwidth | 600MHz |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | 2pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | 125ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Number of Circuits | 4 |
