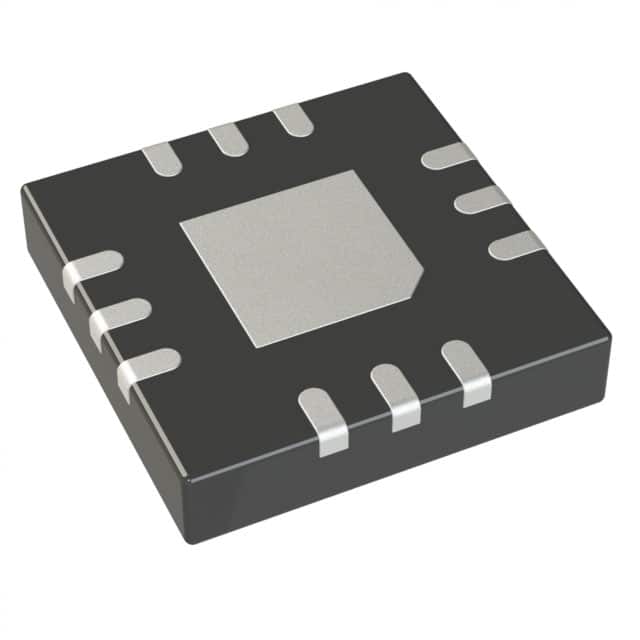

ADG1236YCPZ-REEL7
IC SWITCH SPDTX2 190OHM 12LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG1236YCPZ-REEL7 is a dual, 2:1, SPDT analog switch featuring low on-resistance of 190 Ohms maximum. This component offers excellent performance with a -3dB bandwidth of 1GHz and low channel capacitance of 1.6pF. Channel-to-channel resistance matching is specified at 3.5 Ohms. The device exhibits low leakage current of 100pA maximum and impressive crosstalk suppression of -85dB at 1MHz. Operable over a temperature range of -40°C to 125°C, it supports dual supply voltages up to ±15V and single supply up to 12V. The switch time is characterized by 150ns turn-on and 90ns turn-off. This device is supplied in a 12-LFCSP (3x3) package, arranged on tape and reel. It is commonly utilized in applications such as signal routing, data acquisition systems, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 190Ohm |
| -3db Bandwidth | 1GHz |
| Supplier Device Package | 12-LFCSP (3x3) |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | -1pC |
| Crosstalk | -85dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 3.5Ohm |
| Switch Time (Ton, Toff) (Max) | 150ns, 90ns |
| Channel Capacitance (CS(off), CD(off)) | 1.6pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 2 |
