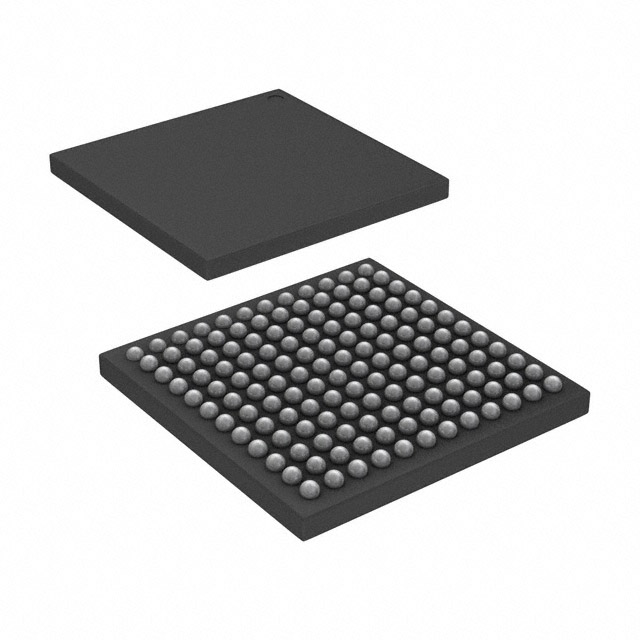

AD15700BCA
IC I/0 PORT 16BIT 144-CSPBGAManufacturer: Analog Devices Inc.
Categories: Analog Front End (AFE)
Quality Control: Learn More
The Analog Devices Inc. AD15700BCA is a 16-bit Analog Front End (AFE) component designed for high-performance signal acquisition. This single-channel device features a 16-bit resolution, offering precise conversion of analog signals. It operates with analog supply voltages of 5V and digital supply voltages ranging from 4.5V to 5.5V, consuming a maximum of 132 mW of power. The AD15700BCA is housed in a compact 144-CSPBGA (10x10) package, suitable for surface-mount applications. Its robust design makes it ideal for use in medical imaging, industrial monitoring, and test and measurement equipment where accurate analog signal processing is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 144-LFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Supplier Device Package | 144-CSPBGA (10x10) |
| Number of Channels | 1 |
| Power (Watts) | 132 mW |
