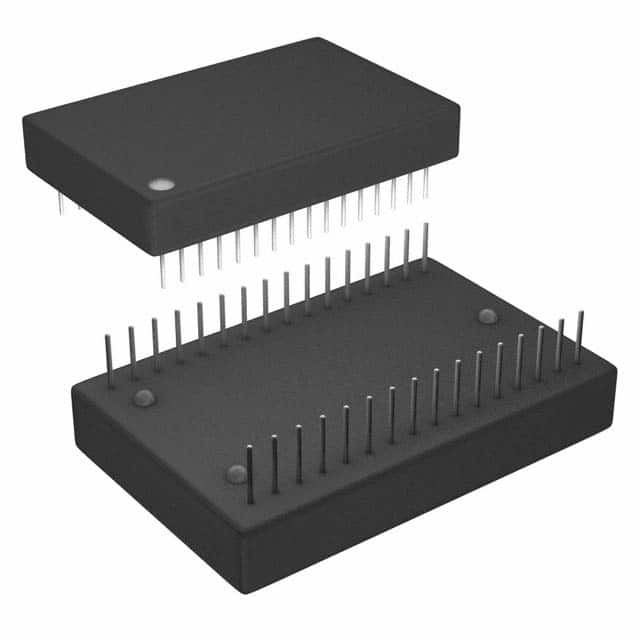

RDC1740-413B
IC R/D CONVERTER 14BIT 32DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. R/D Converter, part number RDC1740-413B, is a 14-bit resolver-to-digital converter featuring a parallel data interface. This through-hole component is supplied in a 32-DIP (0.900", 22.90mm) package and operates from dual ±15V supplies. The RDC1740-413B is designed for applications requiring precise angle and velocity measurements from resolver transducers, commonly found in industrial automation, robotics, and aerospace systems. It offers three channels and operates across a temperature range of -55°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 32-DIP (0.900"", 22.90mm) |
| Mounting Type | Through Hole |
| Type | R/D Converter |
| Data Interface | Parallel |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | ±15V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 14 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 32-DIP |
| Number of Channels | 3 |
