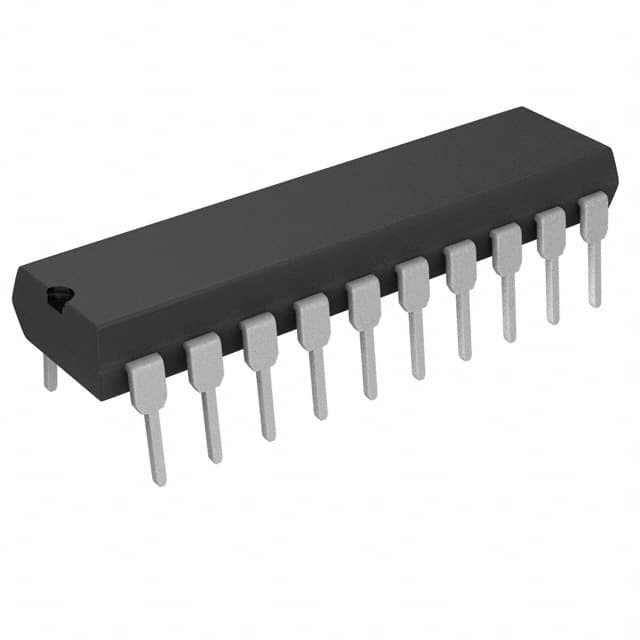

LTC1289CCN#PBF
IC DAS 12BIT 25K 20DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. LTC1289CCN-PBF is a 12-bit Data Acquisition System (DAS) featuring a 25kSPS sampling rate. This component offers both serial and parallel data interfaces, facilitating flexible system integration. It is housed in a 20-pin DIP package suitable for through-hole mounting. The LTC1289CCN-PBF operates from dual ±3.3V supply voltages and provides 8 input channels. Its operating temperature range is 0°C to 70°C. This device finds application in industrial automation and data logging systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Data Acquisition System (DAS) |
| Data Interface | Serial, Parallel |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | ±3.3V |
| Sampling Rate (Per Second) | 25k |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 20-PDIP |
| Number of Channels | 8 |
