LTC1289BCN#PBF
IC DAS 12BIT 25K 20DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. LTC1289BCN-PBF is a 12-bit Data Acquisition System (DAS) featuring a 25kSPS sampling rate. This component offers both serial and parallel data interfaces, providing flexible integration into system designs. It supports dual ±3.3V power supplies.

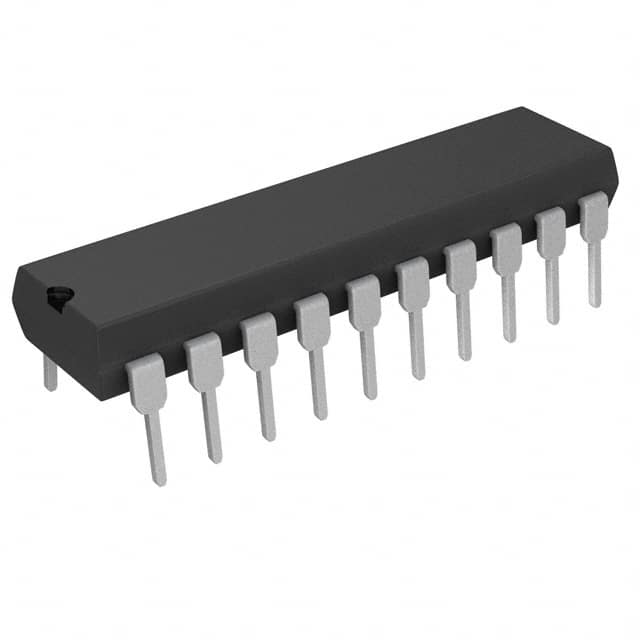

The LTC1289BCN-PBF is housed in a 20-PDIP package with a through-hole mounting type, suitable for applications demanding robust component placement. With 8 input channels, this device is designed for applications requiring precise analog-to-digital conversion. Its operating temperature range is from 0°C to 70°C. This component finds application in various industrial and commercial systems including test and measurement, medical instrumentation, and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Data Acquisition System (DAS) |
| Data Interface | Serial, Parallel |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | ±3.3V |
| Sampling Rate (Per Second) | 25k |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 20-PDIP |
| Number of Channels | 8 |
