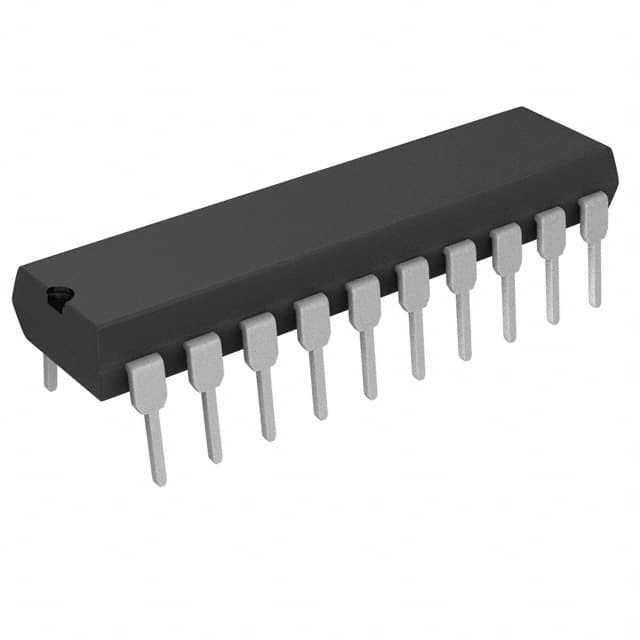

LTC1283CN#PBF
IC DAS 10BIT 15K 20DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
The Analog Devices Inc. LTC1283CN-PBF is a 10-bit Data Acquisition System (DAS) component offering a sampling rate of 15kSPS. This device features both serial and parallel data interfaces, enabling flexible system integration. Designed for through-hole mounting, it is supplied in a 20-PDIP (0.300", 7.62mm) package. The LTC1283CN-PBF supports a single supply voltage range of 3V to 3.6V or dual ± supplies. With 8 input channels, this component is well-suited for applications in industrial automation, data logging, and instrumentation. The operating temperature range for this device is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Data Acquisition System (DAS) |
| Data Interface | Serial, Parallel |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | ±3.3V, 3V ~ 3.6V |
| Sampling Rate (Per Second) | 15k |
| Resolution (Bits) | 10 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 20-PDIP |
| Number of Channels | 8 |
