AD974BN
IC DAS 16BIT 200K 28DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More

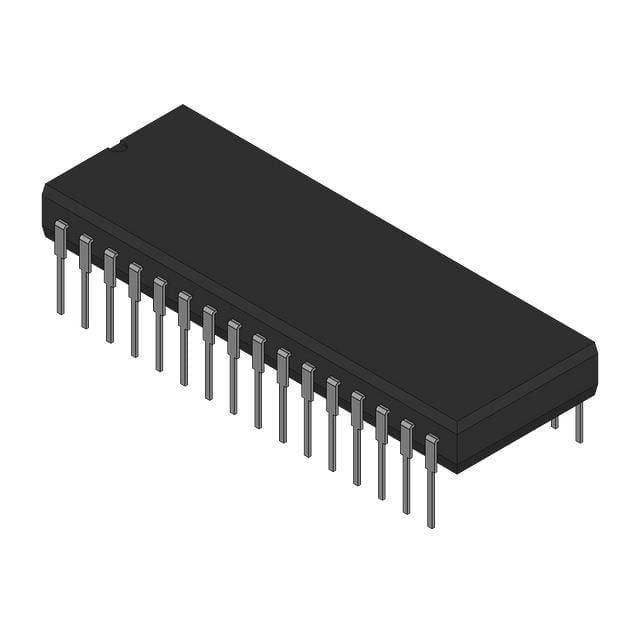

Analog Devices Inc. AD974BN is a 16-bit, 200 kSPS serial Data Acquisition System (DAS) housed in a 28-PDIP (0.600", 15.24mm) package. This through-hole component features four channels and utilizes a serial data interface. The AD974BN operates within an ambient temperature range of -40°C to 85°C and requires a single 4.75V to 5.25V supply, with analog and digital voltage sources. This component is commonly employed in applications requiring precise data conversion and acquisition, such as industrial control systems, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Data Acquisition System (DAS) |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 200k |
| Resolution (Bits) | 16 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 28-PDIP |
| Number of Channels | 4 |
