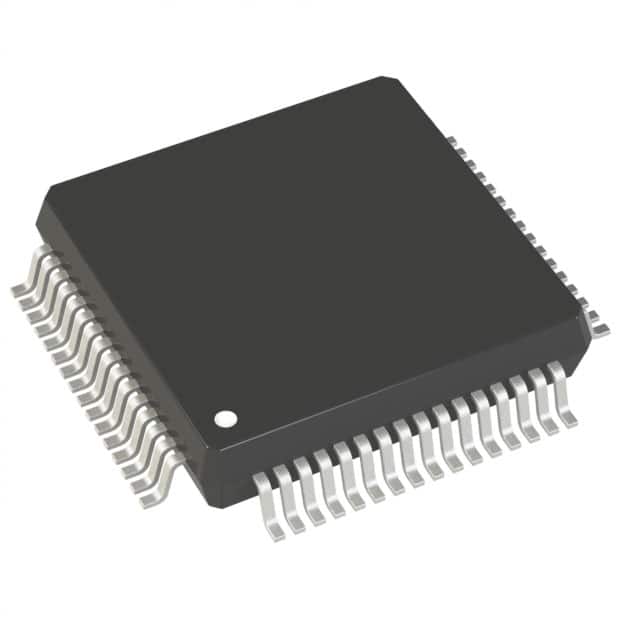

AD7607BSTZ-RL
IC DAS/ADC 14BIT 200K 64LQFPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD7607BSTZ-RL is a high-performance 14-bit data acquisition system (DAS) with an Analog-to-Digital Converter (ADC). This device features an 8-channel input multiplexer, enabling simultaneous or sequential conversion of multiple analog signals. The AD7607BSTZ-RL operates with a sampling rate of up to 200 kSPS, facilitating rapid data acquisition. It communicates via a serial peripheral interface (SPI) and digital signal processing (DSP) compatible interface, simplifying integration into various digital systems. The component is housed in a 64-LQFP (10x10) surface-mount package and operates over an industrial temperature range of -40°C to 85°C. Its versatile voltage supply range includes 2.3V to 5.25V for analog and 4.75V to 5.25V for digital power. This component finds application in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Type | Data Acquisition System (DAS), ADC |
| Data Interface | SPI, DSP |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 5.25V, 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 200k |
| Resolution (Bits) | 14 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of Channels | 8 |
