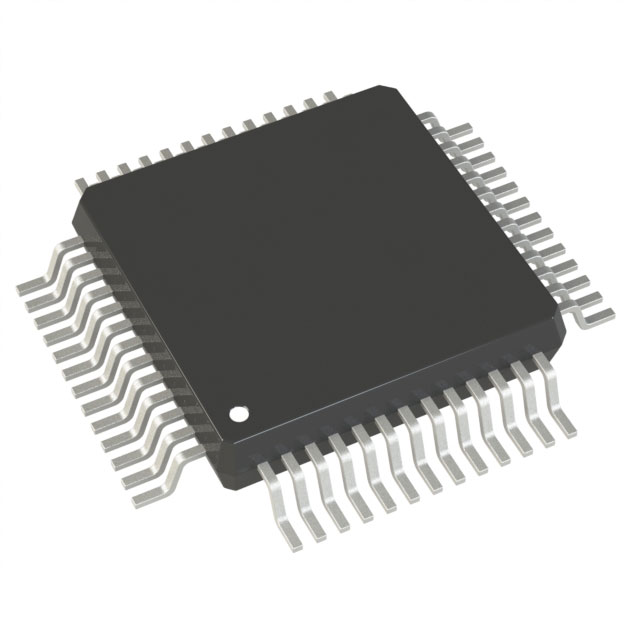

AD7339BS
IC ADC/QUAD DAC 5V W/REF 52-MQFPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD7339BS is an 8-bit, 2MSPS mixed-signal component featuring both Analog-to-Digital Conversion (ADC) and Digital-to-Analog Conversion (DAC) capabilities. This device offers a comprehensive solution for data acquisition and signal generation with its parallel and serial data interfaces. Designed for surface mounting, it is supplied in a 52-MQFP package (10x10mm). The AD7339BS operates from a 5V supply, with both analog and digital voltage sources. Its dual functionality makes it suitable for applications in industrial automation, medical instrumentation, and test and measurement equipment where both precise digitization and signal synthesis are required. The component supports a wide operating temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 52-QFP |
| Mounting Type | Surface Mount |
| Type | ADC, DAC |
| Data Interface | Serial, Parallel |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Sampling Rate (Per Second) | 2M |
| Resolution (Bits) | 8 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 52-MQFP (10x10) |
| Number of Channels | 2 |
