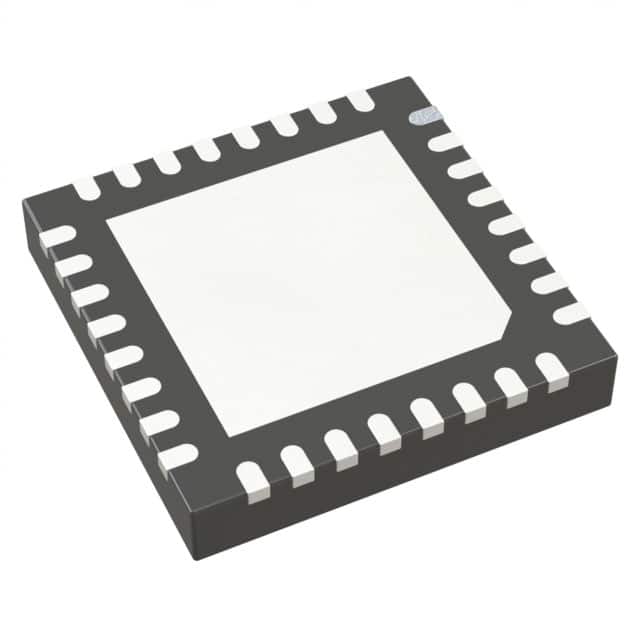

AD5758BCPZ
1 CHANNEL, 16-BIT +/-4-TO-20 MAManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD5758BCPZ is a 16-bit, single-channel digital-to-analog converter (DAC) designed for high-precision current output applications. This DAC features an SPI interface for efficient data transfer and is housed in a compact 32-LFCSP (5x5) package suitable for surface mount applications. The device supports output current ranges of +/-4 mA to +/-20 mA, making it ideal for industrial automation, process control, and test and measurement equipment. It operates across a wide temperature range of -40°C to 115°C and offers flexible supply voltage options, accepting both bipolar (-33V to 33V) and unipolar (3V to 5.5V) power sources. The AD5758BCPZ is engineered for applications requiring precise analog signal generation and control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Type | DAC |
| Data Interface | SPI |
| Operating Temperature | -40°C ~ 115°C |
| Voltage - Supply | -33V ~ 33V, 3V ~ 5.5V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 16 b |
| Voltage Supply Source | - |
| Supplier Device Package | 32-LFCSP (5x5) |
| Number of Channels | 1 |
