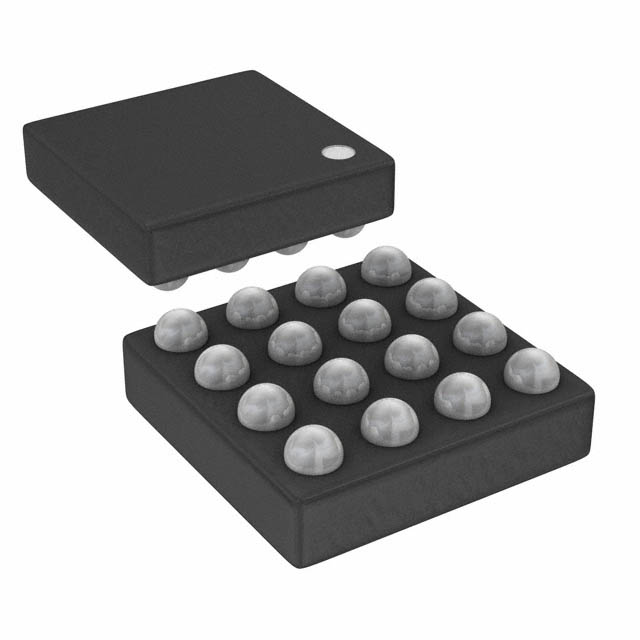

AD5593RBCBZ-RL7
IC ADC/DAC 12BIT 16WLCSPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD5593RBCBZ-RL7 is a versatile 12-bit, 8-channel, mixed-signal control device featuring both Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) functionality within a single chip. This component utilizes an I2C serial interface for data communication, enabling efficient control and monitoring. Designed for surface mount applications, it is supplied in a compact 16-WLCSP (1.96x1.96) package, offered in a Tape & Reel (TR) configuration. The AD5593RBCBZ-RL7 supports a wide operating temperature range of -40°C to 105°C and operates with a flexible supply voltage from 1.8V to 5.5V, accommodating both analog and digital supply sources. Its integrated ADC and DAC capabilities make it suitable for a variety of applications in industrial automation, medical devices, and consumer electronics where precise signal conditioning and conversion are required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | ADC, DAC |
| Data Interface | I2C |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.8V ~ 5.5V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 16-WLCSP (1.96x1.96) |
| Number of Channels | 8 |
