AD2S44UM12B
IC SYNC-R/D CONV 14BIT 2CH 32DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More

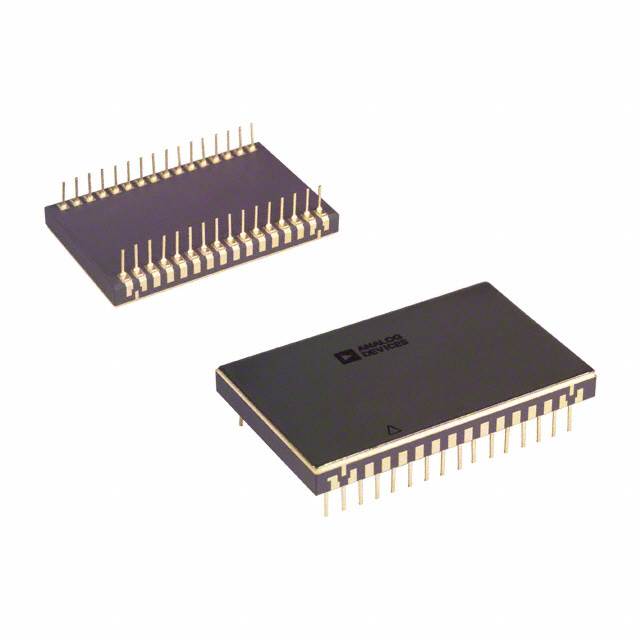

Analog Devices Inc. AD2S44UM12B is a 14-bit, 2-channel Resolver-to-Digital (R/D) converter with a parallel data interface. This component is housed in a 32-CDIP package with through-hole mounting. Designed for operation across a wide temperature range of -55°C to 125°C, it supports dual ±14.25V to ±15V power supplies. The AD2S44UM12B is utilized in applications requiring precise angular position and velocity feedback, commonly found in aerospace, defense, and industrial automation systems. Its robust design and high resolution make it suitable for demanding environments.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-CDIP (0.910"", 23.12mm) |
| Mounting Type | Through Hole |
| Type | R/D Converter |
| Data Interface | Parallel |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | ±14.25V ~ 15V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 14 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 32-BBDIP-H |
| Number of Channels | 2 |
