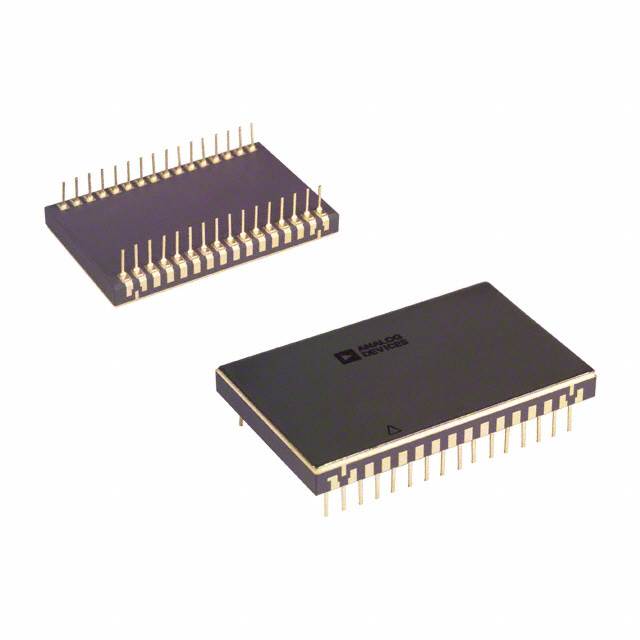

AD2S44TM14B
IC SYNC-R/D CONV 14BIT 2CH 32DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD2S44TM14B is a 14-bit, 2-channel resolver-to-digital converter. This through-hole component, packaged in a 32-CDIP, offers a parallel data interface and operates across a dual ±14.25V to ±15V supply range. Engineered for demanding environments, it functions reliably within an extended operating temperature range of -55°C to 125°C. This device is suitable for applications requiring precise angle and velocity measurements in industrial automation, aerospace, and defense systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-CDIP (0.910"", 23.12mm) |
| Mounting Type | Through Hole |
| Type | R/D Converter |
| Data Interface | Parallel |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | ±14.25V ~ 15V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 14 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 32-BBDIP-H |
| Number of Channels | 2 |
