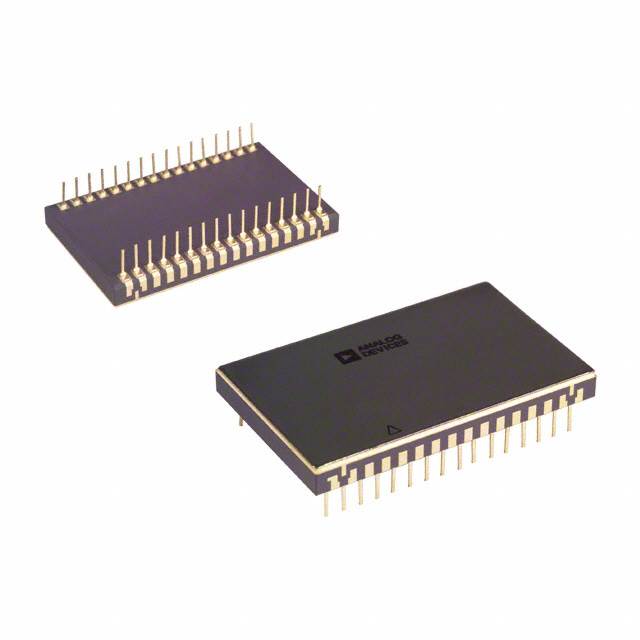

AD2S44TM13B
IC SYNC-R/D CONV 14BIT 2CH 32DIPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. R/D Converter, part number AD2S44TM13B, is a 14-bit, 2-channel synchro-to-resolver converter. This through-hole component features a parallel data interface and is supplied in a 32-BBDIP-H package. Operating across a dual ±14.25V to ±15V supply voltage, the AD2S44TM13B is designed for demanding applications requiring precise angle measurement and signal conversion. Its robust construction and wide operating temperature range of -55°C to 125°C make it suitable for use in aerospace, defense, and high-performance industrial automation systems. The 32-CDIP package ensures reliable mounting and connectivity in complex circuit designs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-CDIP (0.910"", 23.12mm) |
| Mounting Type | Through Hole |
| Type | R/D Converter |
| Data Interface | Parallel |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | ±14.25V ~ 15V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 14 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 32-BBDIP-H |
| Number of Channels | 2 |
