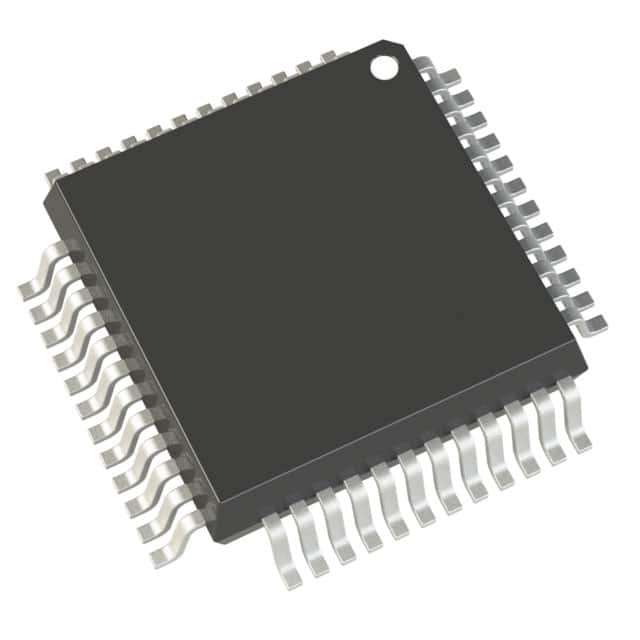

AD1974YSTZ-RL
IC ADC/AUDIO 24BIT 192K 48LQFPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc. AD1974YSTZ-RL is a 4-channel, 24-bit audio analog-to-digital converter with a sampling rate of up to 192 kSPS per channel. This device features a serial peripheral interface (SPI) for data transfer and is housed in a 48-LQFP (7x7) surface-mount package. The AD1974YSTZ-RL operates across a voltage supply range of 3V to 3.6V, with separate analog and digital supply sources. Its high resolution and sampling rate make it suitable for demanding audio applications in consumer electronics, professional audio equipment, and automotive systems. The component is supplied on tape and reel for automated assembly processes and is rated for operation within an ambient temperature range of -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Type | ADC, Audio |
| Data Interface | SPI |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 192k |
| Resolution (Bits) | 24 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of Channels | 4 |
Request a Quote
