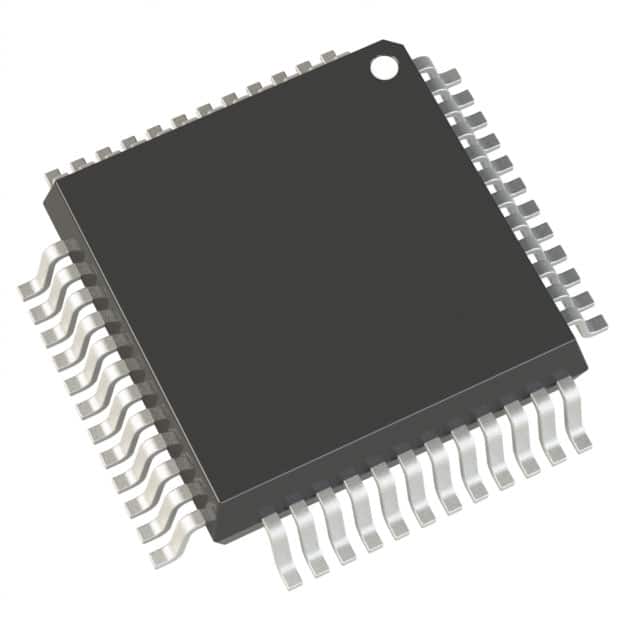

AD1953YSTZRL
IC DAC/AUDIO 26BIT 48K 48LQFPManufacturer: Analog Devices Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
The Analog Devices Inc. AD1953YSTZRL is a high-performance 26-bit stereo audio digital-to-analog converter (DAC) from the SigmaDSP® series. This component supports both DSD and PCM data interfaces, offering a versatile solution for audio signal processing. With a maximum sampling rate of 48kHz, it is engineered for demanding audio applications. The device features three channels and operates from a 5V supply, with separate analog and digital voltage supplies. Its 48-LQFP (7x7) package facilitates surface mounting, and it is supplied in tape and reel packaging for automated assembly. The AD1953YSTZRL is suitable for use in professional audio equipment, automotive infotainment systems, and consumer electronics where superior audio fidelity is paramount. It operates within a temperature range of -40°C to 105°C.
Additional Information
Series: SigmaDSP®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 90 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Type | DAC, Audio |
| Data Interface | DSD, PCM |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 5V |
| Sampling Rate (Per Second) | 48k |
| Resolution (Bits) | 26 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of Channels | 3 |
