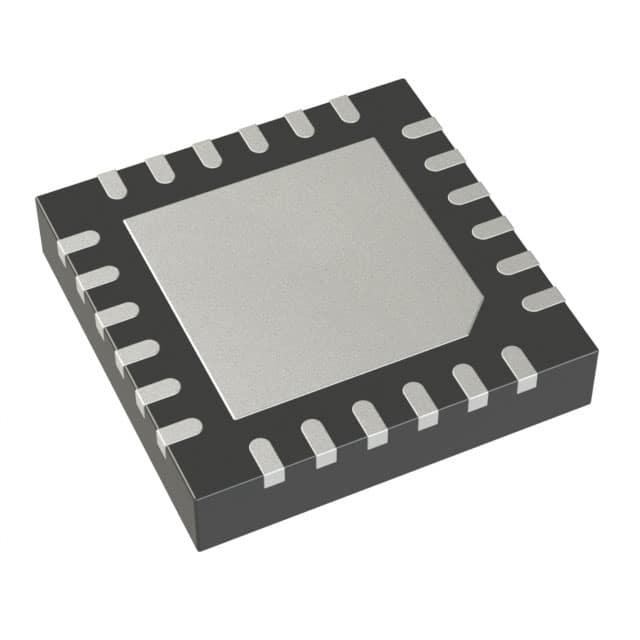

LTC6603CUF#TRPBF
IC FILTER 2.5MHZ LOW PASS 24QFNManufacturer: Analog Devices Inc.
Categories: Active
Quality Control: Learn More
Analog Devices Inc. LTC6603CUF-TRPBF is a 9th-order, 2.5MHz low-pass filter designed for applications requiring precise signal conditioning. This component features two independent filter channels, housed in a compact 24-lead 4x4mm QFN package with an exposed pad for enhanced thermal performance. Operating from a 2.7V to 3.6V supply, the LTC6603CUF-TRPBF is suitable for demanding environments where space and power efficiency are critical. Its 9th-order Butterworth response provides a sharp cutoff characteristic, making it ideal for use in telecommunications infrastructure, medical equipment, and industrial control systems. The surface-mount design facilitates automated assembly, and the tape and reel packaging ensures compatibility with high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Filter Type | Low Pass |
| Mounting Type | Surface Mount |
| Voltage - Supply | 2.7V ~ 3.6V |
| Number of Filters | 2 |
| Filter Order | 9th |
| Frequency - Cutoff or Center | 2.5MHz |
| Supplier Device Package | 24-QFN (4x4) |
