ADXL345BCCZ-RL7
ACCEL 2-16G I2C/SPI 14LGAManufacturer: Analog Devices Inc.
Categories: Accelerometers
Quality Control: Learn More

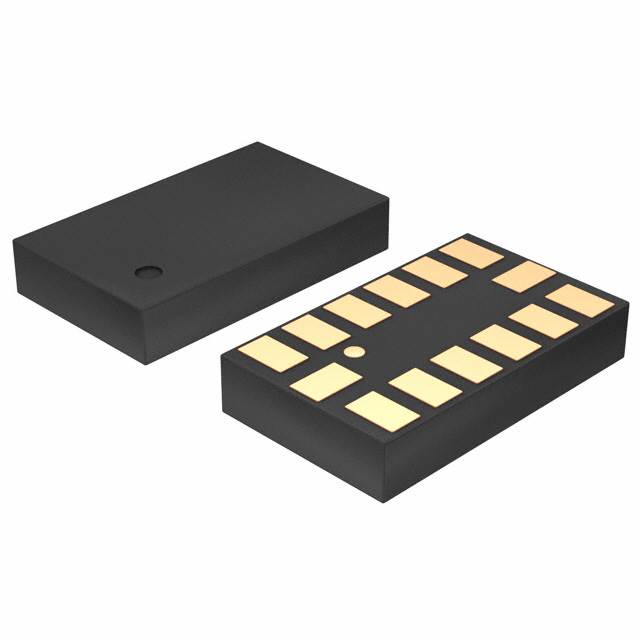

The Analog Devices Inc. ADXL345BCCZ-RL7 is a compact, versatile digital accelerometer designed for high-precision motion sensing applications. This 14-LGA (3x5) package component offers selectable acceleration ranges of ±2g, ±4g, ±8g, and ±16g, with a configurable bandwidth from 0.05Hz to 1.6kHz. It features I2C and SPI serial interfaces for efficient data transfer and includes adjustable bandwidth for optimized performance.
With a sensitivity of 256 LSB/g at the ±2g range, down to 32 LSB/g at the ±16g range, the ADXL345BCCZ-RL7 provides detailed axis (X, Y, Z) acceleration measurements. Its surface mount design and operation over a temperature range of -40°C to 85°C make it suitable for integration into a wide array of electronic systems. This component is commonly utilized in consumer electronics, industrial automation, and automotive safety systems where accurate inertial measurement is critical. The device operates with a supply voltage of 2V to 3.6V and is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFLGA |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g, 16g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.6V |
| Bandwidth | 0.05Hz ~ 1.6kHz |
| Supplier Device Package | 14-LGA (3x5) |
| Sensitivity (LSB/g) | 256 (±2g) ~ 32 (±16g) |
| Sensitivity (mV/g) | - |
