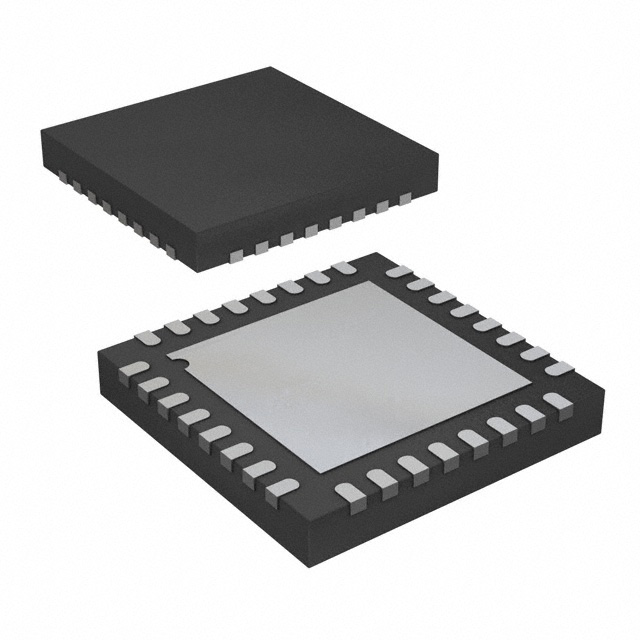

ADXL314WBCPZ-RL
HI-G LOW POWER XL FOR CBMManufacturer: Analog Devices Inc.
Categories: Accelerometers
Quality Control: Learn More
Analog Devices Inc. ADXL314WBCPZ-RL is a triaxial accelerometer designed for high-g shock and vibration monitoring. This digital sensor offers a wide acceleration range of ±200g across the X, Y, and Z axes, with a configurable bandwidth spanning from 3.125Hz to 1.6kHz. Key features include adjustable bandwidth, low-power sleep, and standby modes, making it suitable for applications demanding power efficiency. The device interfaces via I2C or SPI protocols and is housed in a 32-LFCSP-LQ (5x5) package, surface mounted for integration into compact designs. Operating across a temperature range of -40°C to 125°C, the ADXL314WBCPZ-RL finds utility in industrial automation, automotive systems, and aerospace applications requiring robust acceleration measurement capabilities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Sleep Mode, Standby Mode |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-LFQFN Exposed Pad, CSP |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±200g |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 3.6V |
| Bandwidth | 3.125Hz ~ 1.6kHz |
| Supplier Device Package | 32-LFCSP-LQ (5x5) |
| Sensitivity (LSB/g) | 20.48 |
| Sensitivity (mV/g) | - |
