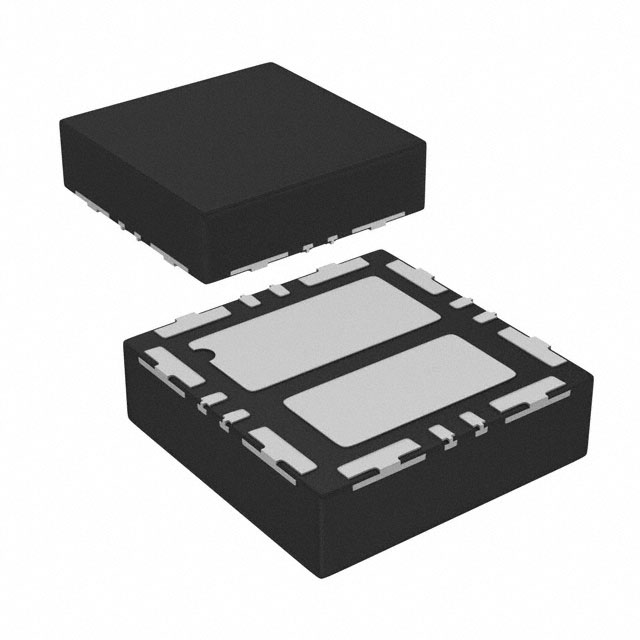

ADXL180WCPZA-RL
IC ACCELEROMETER 16-LFCSPManufacturer: Analog Devices Inc.
Categories: Accelerometers
Quality Control: Learn More
Analog Devices Inc. iMEMS® ADXL180WCPZA-RL is an X-axis accelerometer with selectable acceleration ranges up to ±500g. This component offers an adjustable bandwidth from 100Hz to 800Hz, providing flexibility for various motion sensing applications. The output is an analog voltage with a sensitivity of 32.8mV/g. It operates from a 5V to 14.5V supply and features a compact 16-LFCSP-LQ (5x5) surface-mount package. The device is rated for an operating temperature range of -40°C to 125°C. This accelerometer finds application in industries such as industrial automation, automotive, and condition monitoring. It is supplied on a tape and reel.
Additional Information
Series: iMEMS®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-LFQFN Exposed Pad, CSP |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Type | Analog |
| Axis | X |
| Acceleration Range | ±50g, 100g, 150g, 200g, 250g, 350g, 500g |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 5V ~ 14.5V |
| Bandwidth | 100Hz ~ 800Hz |
| Supplier Device Package | 16-LFCSP-LQ (5x5) |
| Sensitivity (LSB/g) | - |
| Sensitivity (mV/g) | 32.8mV/g |
