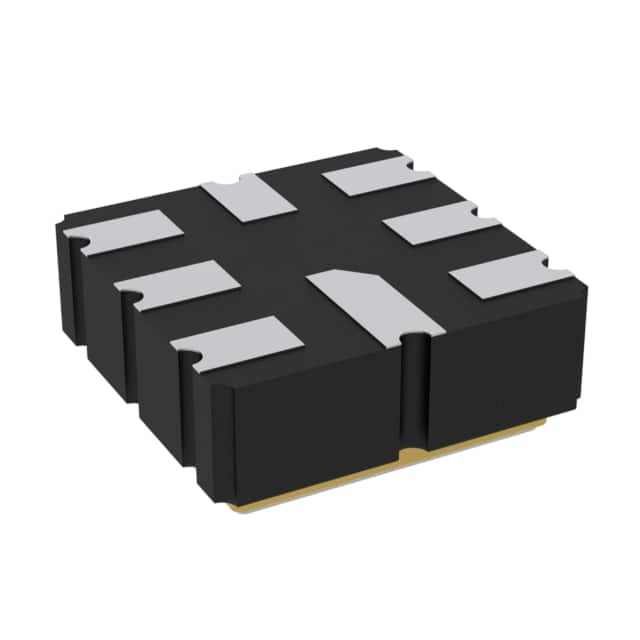

MAX6226ALA50+T
IC VREF SERIES 0.02% 8LCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Voltage Reference
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6226ALA50-T is a high-precision series voltage reference IC. This component offers a fixed 5V output with an exceptional ±0.02% tolerance and a low temperature coefficient of 5ppm/°C, ensuring stable operation across a wide temperature range of -40°C to 125°C. Designed for demanding applications, it can deliver up to 10 mA of output current while consuming only 500 µA of supply current. The noise performance is characterized by 2.85 µVp-p from 0.1Hz to 10Hz. It features an input voltage range of 5.2V to 12.6V and is provided in an 8-CLCC package, suitable for surface mount assembly. This device finds utility in precision measurement equipment, data acquisition systems, and industrial control applications where accuracy and stability are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.02% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-CLCC |
| Temperature Coefficient | 5ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | 5.2V ~ 12.6V |
| Reference Type | Series |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 500µA |
| Supplier Device Package | 8-CLCC (3.8x3.8) |
| Voltage - Output (Min/Fixed) | 5V |
| Noise - 0.1Hz to 10Hz | 2.85µVp-p |
| Noise - 10Hz to 10kHz | - |
| Current - Output | 10 mA |
