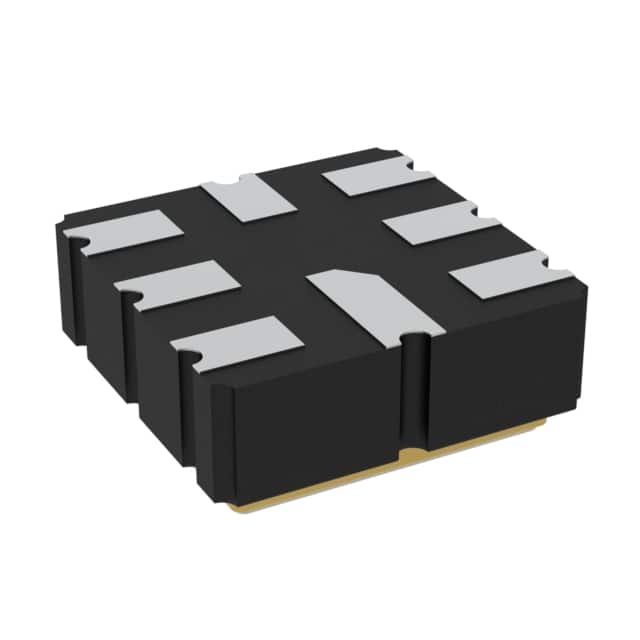

MAX6226ALA25+T
IC VREF SERIES 0.02% 8LCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Voltage Reference
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX6226ALA25-T is a high-precision series voltage reference IC offering a fixed 2.5V output with an exceptional ±0.02% tolerance. This component boasts a low temperature coefficient of 5ppm/°C and minimal voltage noise (1.45µVp-p from 0.1Hz to 10Hz), ensuring stable performance across a wide operating temperature range of -40°C to 125°C. Designed for demanding applications, it can source up to 10mA of output current while consuming only 550µA of supply current. The 8-CLCC package (3.8x3.8) facilitates surface mounting. This device finds application in precision measurement equipment, data acquisition systems, and high-fidelity audio signal processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.02% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-CLCC |
| Temperature Coefficient | 5ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | 2.7V ~ 12.6V |
| Reference Type | Series |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 550µA |
| Supplier Device Package | 8-CLCC (3.8x3.8) |
| Voltage - Output (Min/Fixed) | 2.5V |
| Noise - 0.1Hz to 10Hz | 1.45µVp-p |
| Noise - 10Hz to 10kHz | - |
| Current - Output | 10 mA |
