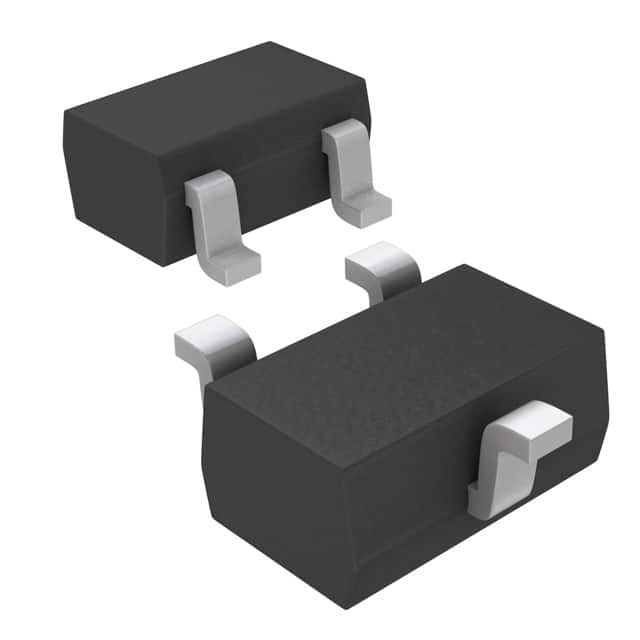

MAX6138BEXR12+T
IC VREF SHUNT 0.2% SC70-3Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Voltage Reference
Quality Control: Learn More
Shunt Voltage Reference IC Fixed 1.2205V V ±0.2% 15 mA SC-70-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.2% |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Temperature Coefficient | 25ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SC-70-3 |
| Voltage - Output (Min/Fixed) | 1.2205V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 20µVrms |
| Current - Cathode | 60 µA |
| Current - Output | 15 mA |
Request a Quote
