MAX6063AEUR-T
IC VREF SERIES 0.2% SOT23-3Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Voltage Reference
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6063AEUR-T is a fixed 3V series voltage reference IC. It offers a tight tolerance of ±0.2% and a low temperature coefficient of 20ppm/°C, ensuring stable performance across its operating temperature range of -40°C to 85°C. Designed for surface mounting, this component is housed in a SOT-23-3 package. Key specifications include a 5 mA output current capability and a supply current of 125µA. Noise performance is rated at 35µVp-p from 0.1Hz to 10Hz and 40µVrms from 10Hz to 10kHz. The input voltage range for the MAX6063AEUR-T is 3.2V to 12.6V. This device finds application in areas requiring precise voltage regulation, such as portable equipment and industrial control systems. The component is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.2% |
| Packaging | Tape & Reel (TR) |

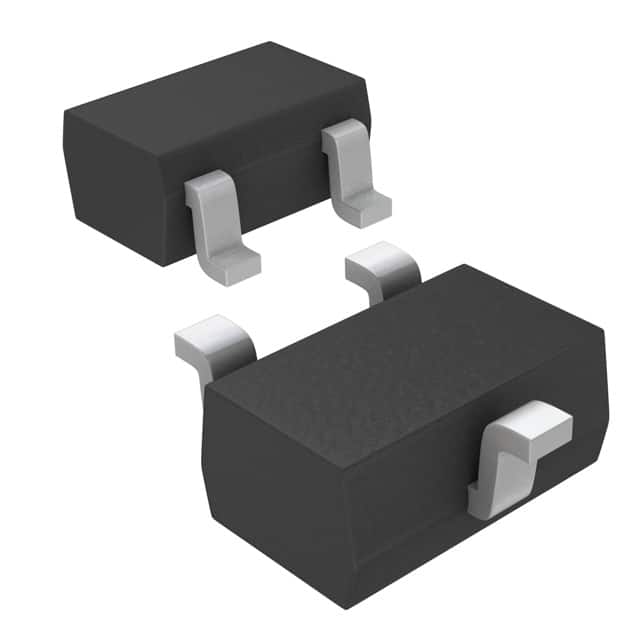

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 20ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | 3.2V ~ 12.6V |
| Reference Type | Series |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 125µA |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 3V |
| Noise - 0.1Hz to 10Hz | 35µVp-p |
| Noise - 10Hz to 10kHz | 40µVrms |
| Current - Output | 5 mA |
