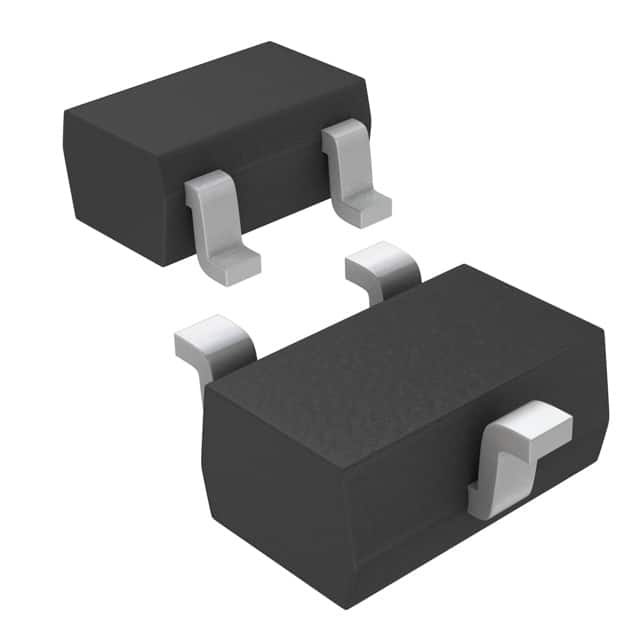

LM4050AEX3-2.1+T
IC VREF SHUNT 2.048V SC70Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Voltage Reference
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated LM4050AEX3-2-1-T is a fixed shunt voltage reference with an output of 2.048V and a tight tolerance of ±0.1%. This component is designed for applications requiring high precision and stability, operating with a cathode current as low as 65 µA and an output current capability up to 15 mA. The SC-70-3 package is suitable for surface mount assembly. Its temperature coefficient is rated at 50ppm/°C, and it operates reliably across an extended temperature range of -40°C to 125°C. Noise performance is 28µVrms from 10Hz to 10kHz. This device finds application in various industries including industrial control, medical instrumentation, and automotive electronics where accurate voltage regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.1% |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Temperature Coefficient | 50ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SC-70-3 |
| Voltage - Output (Min/Fixed) | 2.048V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 28µVrms |
| Current - Cathode | 65 µA |
| Current - Output | 15 mA |
