MAX463ENG
IC RGB SWITCH 24 DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Video Amps and Modules
Quality Control: Learn More

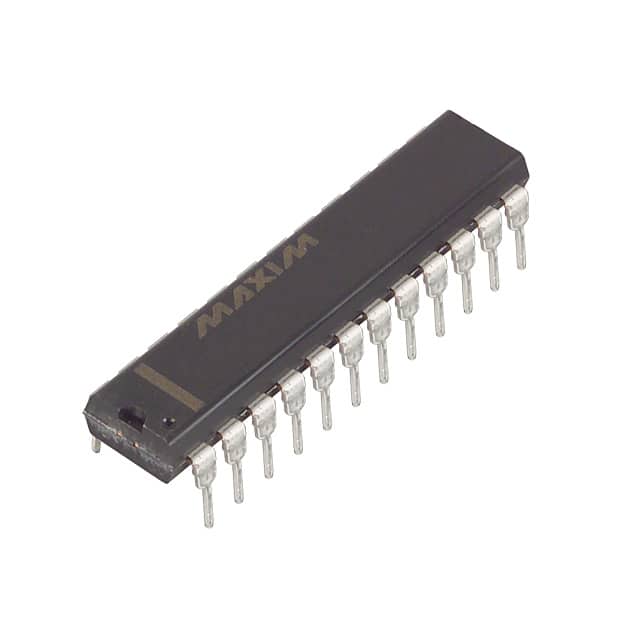

Analog Devices Inc./Maxim Integrated MAX463ENG is a triple video buffer IC featuring a 100 MHz -3dB bandwidth and a 200V/µs slew rate. This component is housed in a 24-PDIP (0.300", 7.62mm) through-hole package, supplied in tubes. Designed for applications requiring high-speed signal buffering, it operates with a single or dual supply voltage of ±4.75V to ±5.25V, drawing a typical supply current of 65 mA. The MAX463ENG is suitable for use in video distribution systems and other high-frequency signal processing applications.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Applications | Buffer |
| Slew Rate | 200V/µs |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V |
| Supplier Device Package | 24-PDIP |
| Number of Circuits | 3 |
| Current - Supply | 65 mA |
| -3db Bandwidth | 100 MHz |
