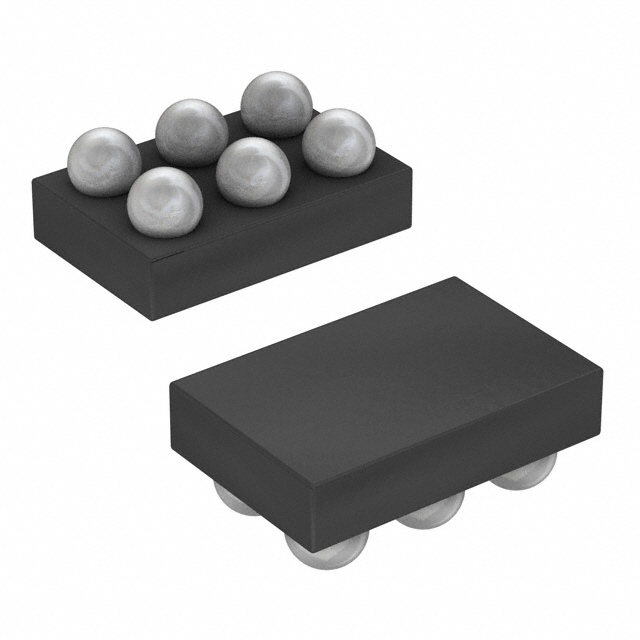

MAX3204EEBT+T
TVS DIODE 6UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: TVS Diodes
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX3204EEBT-T is a 4-channel steering transient voltage suppressor (TVS) diode designed for robust circuit protection. This surface mount device, supplied in a 6-WLP package, offers effective clamping for sensitive signal lines. Its unidirectional channel configuration is optimized for applications requiring precise voltage regulation under transient stress. The MAX3204EEBT-T is suitable for use in the Ethernet industry. It operates efficiently across a temperature range of -40°C to 85°C. This component is delivered in Tape & Reel (TR) packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Ethernet |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | - |
| Supplier Device Package | 6-WLP |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
